Product Parameter:
| Model | OMC600 | OMC800 |
| Max DC input power | 600W | 800W |
| Max DC input voltage | 60V | 70V |
| Max continuous input current | 16A | 21A |
| Max input short-circuits current | 18A | 23A |
| Night self-consumption | 0W | 0W |
| Output voltage | 42V | 58V |
| Max output power | 600W | 780W |
| Dimensions(W*D*H) | 103*21.3*105.3mm |
| Weight | 650g |
| Terminals | MC4(Compatible) |
| Relative humidity | 0-100%RH |

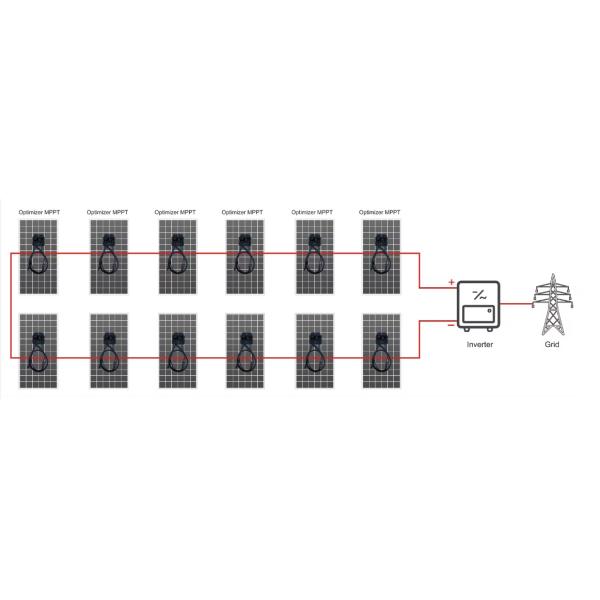

Application:
Product Features:
- Module-level MPPT no worry about shadow occlusion,power generation increased by 5%-25%
- Compatible with market mainstream PV modules andvarious inverters
- Suitable for PV power plants in operation or under constructon
- Clips installation, 5 minutes quick installation
- 12-years standard warranty, high stability, service life over25 years
FAQ:
1.What's the MOQ of your optimizer?
Sample order is acceptable, the MOQ is 1pcs.
2. Can you supply OEM & ODM service?
Yes, we can do OEM & ODM as your requirements for you.
3. What efficiency can your optimizer improve?
Our optimizer can improve the solar panel power generation efficiency by 5-25% base on different condition
4. What kind of certificate do you have for your optimizer?
Our optimizer has the certificate of CE lEC
5. Does your optimizer with the rapid shutdown function?
Yes, our optimizer with the rapid shutdown function,it need to use with our rapid shutdown transmitter together.
6. What brand of inverter can your optimizer be compatible with?
Our optimizer is compatible with most inverters on the market, except SolarEdge, Huawei.
